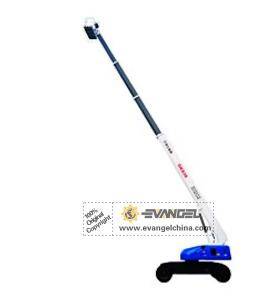

GKS38 Self-propelled Aerial Work Platform

GKS38 Self-propelled Aerial Work Platform



Feature



Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation

Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.

Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.



Parameter



Items

Unit

Parameters

Total length

mm

13250

Total width

mm

2490/3390

Total height

mm

3100

Axle base

mm

3600

Rated work height

m

38

Max. platform height

m

36.3

Max.work range

m

19

Arm luffing range

°

-12~+80

Arm luffing time

s

60

Arm contraction time

s

90

Max.rotation speed

r/min

0.8

Max.tail swing

mm

1400

Platform size

mm

1800×900×1150

Platform rotation range

°

180

Turntable rotation radius

mm

2650

Total weight under travel condition

kg

18500

Rated load

kg

150

Max. load

kg

450

Max.travel speed

km/h

4.8

Min. turning radius

m

7

Min.ground clearance

mm

260

Max. gradeability

%

40

Engine model



B3.3 Tier3

Rated engine power

kW/(r/min)

63/(2600)

Solid tyre



12.00-20/8.5



The specification is subject to change without notice.
