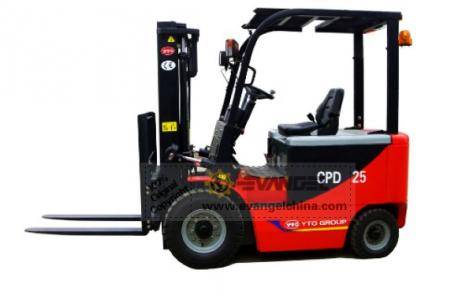

CPD15/20/25/30/35 Battery Forklift

YTO Battery Forklift CPD15/20/25/30/35



Speciality parameter Model CPD10 CPD15 CPD20 CPD25 CPD30 CPD35
Power type Battery Battery Battery Battery Battery Battery
Rated capacity kg 1000 1500 2000 2500 3000 3500
Load center d mm 500 500 500 500 500 500
Lift height h2 mm 3000 3000 3000 3000 3000 3000
Mast tilt angle (forward/backward) a/b Deg 6/12 6/12 6/12 6/12 6/12 6/12
Front overhang L3 mm 425 425 465 465 486 486
Wheel-base L4 mm 1370 1370 1500 1500 1700 1700
Tread(front/rear) b4/b5 mm 890/920 890/920 970/950 970/950 1000/970 1000/970
Performance parameter Travel brake Hydraulic-Foot pedal
Parking brake Mechanical-Hand level
Lift speed(with/without load) mm/s 260/380 260/380 240/380 240/380 280/400 260/390
Lower speed (with/without load) mm/s (load)600      (without load) 300
Travel speed (with/without load) km/h 11/13 11/13 11/12 11/12 13/15 13/15
Max. gradeability (laden) % 15 10 10 10 13 10
Max. Towing (with/without load) kN 6/5 6.5/5.5 9.4/7.5 9.8/8 11/9 9.8/8
Weight Distribution with load(front/rear) 3350/500 3900/600 5250/720 5900/840 6920/1080 7570/1180
Weight Distribution without load(front/rear) 1200/1650 1300/1700 1720/2250 1825/2415 2150/2850 2230/3020
Power, transmission and others motor Driving motor Model XQ-5-T XQ-5-T XQ-6.3-1T XQ-6.3-1T XQ-10-T XQ-10-T
Rated power kw 5 5 6.3 6.3 10 10
Rated rotation r/min 1480 1480 1200 1200 1200 1200
Working motor Model XQD-7.5-C XQD-7.5-C XQD-8.6-C XQD-8.6-C XQD-13-C XQD-13-C
Rated power kw 7.5 7.5 8.6 8.6 13 13
Rated rotation r/min 1550 1550 1550 1550 1550 1550
Controller Manufacturer GE GE GE GE GE GE
Type MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET
Battery Voltage V 48 48 48 48 80 80
Capacity Ah 550 550 630 630 560 560
Size(L*W*H) mm 725*982*500 725*982*500 820*1065*520 820*1065*520 830*1160*570 830*1160*570
Gearbox Transmission type Mechanical
Tyre type Pneumatic tyres
Model Pront 6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28*9-15-14PR 28*9-15-14PR
Rear 16*6-8-10PR 16*6-8-10PR 18*7-8-14PR 18*7-8-14PR 18*7-8-14PR 18*7-8-14PR
Others Dead.weight kg 2850 3000 3970 4240 5000 5220
Free lift height h4 mm 135 135 140 140 165 165
Fork Thickness*Width*Length c*b*a mm 35*100*920 35*100*920 40*125*1070 40*125*1070 45*125*1070 45*125*1070
Overall dimensions Overall length(without forks) L2 mm 2070 2100 2380 2430 2625 2650
Overall width b1 mm 1070 1070 1150 1150 1225 1225
Overall height Extended height(mast) h1 mm 4020 4020 4030 4030 4220 4220
Lowered height (mast) h3 mm 1995 1995 1995 1995 2200 2200
Overhead guard h7 mm 2130 2130 2150 2150 2250 2250
Min. turning radius Wa mm 1950 1950 2050 2100 2350 2350
Min. under ground clearance Under mast m1 mm 110 110 110 110 115 115
Center of wheel-base m2 mm 105 105 120 120 135 135
Battery distribution
v/Ah 48/550 48/580 48/630 80/490 80/560
CPD10 *
CPD15 * &
CPD20 & *
CPD25 & *
CPD30 & *
CPD35 *
"*" Marked standard distribution
"&" Marked optional distribution

Descriptions:

1. Dual Motor & Dual Controller

There are double motors & controllers in this system,which could be controlled and operated separately with a high reliability and maintenance easily.

2.A ultra-capacity battery array has a longer durability.

3.Separately Excited Direct Current Motor Control System

The separately excited direct current control system can achieve a anti-slip function on a slope,reduces the working current fluctuation of battery and motor greatly compared with the conventional excited motorized control system.Therefor the travel speed does not change obviously due to its load.

4.Hydraulic Dynamic Load Sensoring Technology(HDLT)

The advanced HDLT & new type of intergrated load sensoring steering,achieve the flow-divided by a single pump,to enable the forklift hydraulic system with a higher efficiency and more energy conservation.

5.Intelligent Protection System of The Electric Controller

Intelligent protection system of the electric controller ,e.g. protection in wrong order operation;seat power-failure protection;service brake & steering hold on;an emergency brake in special situations.



All technical parameters are subject to change without prior notice because of technical improvements.
