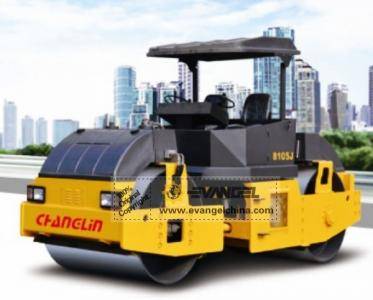

8105J Vibratory Roller

·          Equipped with reliable genuine Cummins engine

·          Single frequency & Double amplitude, and super centrifugal force, creates strong compacting effect.

·          Reasonable configuration, reliable performance, and high working efficiency hydraulic components

·          Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.


·          Overall Dimension



1

Length

4880mm



2

Width(to outside of wheels)

1980mm



3

Height(To the top of the cab)

2800mm



4

Wheel base

3180mm



5

Min. ground clearance

380mm



Main Technical Specification



1

Static line force(vibratory Drum)

259N/cm



2

Static line force(Driving drum)

317N/cm



3

Frequency

 42HZ



4

Centrifugal-Force

85/98KN



5

Amplitude

0.45/0.70mm



6

Operating weight

10000kg



7

Static Weight at Drum

4500kg



8

Static Weight at rear drum

5500kg



9

Min. turning radius

6000mm



10

Drum diameter

 1200mm



11

Drum width

 1700mm



12

Traveling speed(Km/h),3 forward &3 reverse




(1) 1st gear (F/R)

2.4



(2) 2nd gear (F/R)

4.8




(3) 3th gear (F/R)

8.4



13

Gradient capacity

20%



Diesel engine



1

Model

Cummins engine4BT3.9-C100



2

Type

Vertical, in-line, liquid-cooled and four-stroke engine



3

Rated output

75 kW



4

Rated speed

2400(r/min)



6

Max. Torque

330(N.M)



7

Starting type

Electric



Driving System

1

Type

Mechanical transmission and rear wheel drive

2

Transmission line

Engine-gearbox-shaft-side transmission

3

Total ratios

21.32

Working Device Hydraulic System

1

Model of vibratory pump


2

System pressure


3

Model of vibratory motor


Steering System

1

Type

Middle articulated frame. Full-hydraulic Steering

2

Model of steering pump


3

Model of redirector


4

System pressure


5

Dimension of steering cylinder


Brake System

1

Type of traveling brake

pedal control clamp brake

2

Type of parking brake

Hand brake

Flexible shaft control clamp brake

Oil Capacity

1

Fuel(diesel)

160 (L)

2

Engine lubricating oil

15 (L)

3

Oil for hydraulic system

160(L)

4

water for Sprinkle water tank

300x2 (L)
