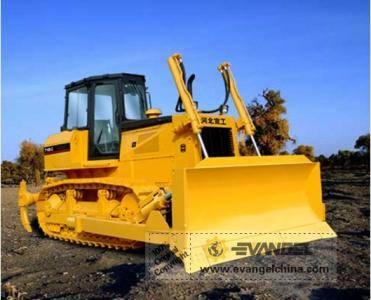

T165-2 Bulldozer


T165-2 Bulldozer

Features:

Semi-rigid suspended, mechanical transfer, hydraulic controlled track-type bulldozer. Oil booster control clutch, normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Single lever pilot hydraulic controls implement. Superior cabin is designed with streamline outlook and electric monitor. Been Popular among customers by its many merits such as productive efficiency, easy operated, low maintenance cost. T165-2 will be the ideal choice for transportation, desert working, oil field, electric power, mine project, etc. It is the updated product based on T165-1.

Specifications:

Type of blade

Angle

Tilt

Operation weight  kg

17900

17800

Ground pressure  kpa

69.3

69

Track gauge  mm

1880

1880

Min.ground clearance  mm

352.5

352.5

Gradient

30/25

30/25

Blade width  mm

4.9

5

Blade width  mm

3762

3297

Max.digging depth  mm

377

420

Overall dimensions  mm

5716x3762x3160

5416x3297x3160

Engine





Type

WD10G175E15

WD10G175E15

Rated revolution  rpm

1850

1850

Flywheel power  KW

120

120

Max.torque  N.m/rpm

810 / 1000-1200

810 / 1000-1200

Rated fuel consumption  g/KW.h

215

215
