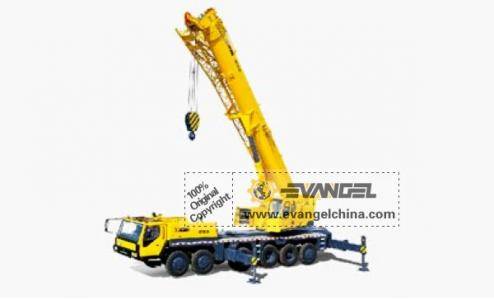

QY100K Truck Crane

QY100K Truck Crane



Parameter



Classificatory

Item

Unit

Parameter

Outline dimension

Overall length

mm

15230

Overall width

mm

3000

Overall height

mm

3860

Mass

Total mass in travel state

kg

65000

Travel performance

Travel speed

Max. travel speed

km/h

75

Min. stable travel speed

km/h

0.5

Turning diameter

Min. turning diameter

m

24

Min. turning diameter at boom tip

m

26.6

Power ratio

kW/t

7.3

Min. ground clearance

mm

310

Approach angle

(°)

23

Departure angle

(°)

15

Braking distance (at 30km/h)

m

≤10

Max. grade-ability

40

Power

Engine rated output

kW/(r/min.)

324/1800

Engine rated torque

N.m/(r/min.)

2100/1200


Main Technical Data for Lifting Operation

Classificatory

Item

Unit

Parameter

Lifting performance

Max. total rated lifting capacity

t

100

Min. rated working radius

m

3

Max. load moment

Base boom

kN.m

3238

Fully extended boom

kN.m

1670

Fully extended boom + Jib

kN.m

1127

Outrigger span

Longitudinal

m

7.56

Lateral

m

7.6

Boom length

Base boom

m

12.8

Fully extended boom

m

48

Fully extended boom + Jib

m

48 + 18.1

Jib offset angle

°

0, 15, 30

Working speed

Boom elevating time

Boom raising

s

60

Boom telescoping time

Full extending / Full retracting

s

140

Max. swing speed

r/min

2

Hoist speed (single line at 4th layer)

Main winch

m/min

110

Aux. winch

m/min

85


The specification is subject to change without notice.
