QUY600 Crawler Crane

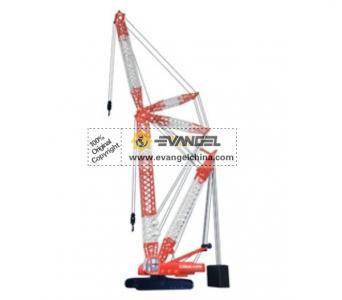

QUY600 Crawler Crane



Features



1. This crawler crane, which is leading the way in lifting capacity, has strong superlift performance under three working conditions; its maximum rated lifting capacity is 600t, and the maximum lifting capacity and radius is 600T×9M when the crane works with superlift counterweight;

2. Wireless remote control technology is applied to assemble and dismantle the crawler carrier. Remote monitoring system GPS/GPRS is adopted, which has the functions of global positioning, working condition monitoring, fault diagnosis, remote maintenance and warning, and anti-theft.


3. The tilting-back support of luffing jib, whose structure is entirely new, provides multiple safety protection.


4. Powerful driving force of traveling mechanism, high-quality track shoe material, and the added support roller on track shoe can reduce the wearing degree of track shoe effectively.


5. The Load Moment Limiter has an added lifting capacity enquiring function, by which the operator can get to know the lifting capacities under various working conditions and determine the required boom configurations of crane in accordance with the construction conditions.


6. The open/close pump control variable system, which is controlled by electro-hydraulic proportional control valve, applies CAN Bus control technology.


7. The slewing mechanism has controllable free-swing function which can reduce the impacts on the crane and ensure that superstructure starts/stops swing more stably. The external roller type (triple row bearing) slewing ring and slewing reducer imported from Germany, which has the advantages of great load-bearing capacity and high precision, can ensure stable and precise slewing motion



Parameter



Item

value

Remarks

Max. lifting capacity/ radius

Without superlift counterweightt×m

600×6

With superlift counterweightt×m

600×9

Main boom lengthm

24~84

Length of main boom with light boom head

Without superlift counterweightm

72~102

With superlift counterweightm

90~138

Deadweight with basic boomt

475

Fixed jib lengthm

12~36

Max. lifting capacity of fixed jibt

110

Offset angle of fixed jib°

10,30

Max. length of main boom with fixed jib

Without superlift counterweightm

96+36

With superlift counterweightm

138+36

Luffing jib lengthm

24~96

Max. lifting capacity of luffing jib

Without superlift counterweightm

210

With superlift counterweightm

310

Main boom angle under luffing jib working condition °

65,75,85

Max. length of main boom with luffing jib

m

Without superlift counterweightm

66+84

With superlift counterweightm

84+96

Max. speed of single rope on drum

Main winchm/min

130

The 8th rope layer

Auxiliary winchm/min

130

The 7th rope layer

Derricking winchm/min

2×56

The 4th rope layer

Luffingwinchm/min

110

The 6th rope layer

Superlift derricking winchm/min

130

The 6th rope layer

Slewing speedrpm

0~0.7

Traveling speedkm/h

0~0.98

Gradeability%

20%

Ground pressureMPa

0.13

Overall dimensions (L×W×H) of basic machine in transportation conditionmm

16960×3550×

3400

With mast

Engine

Rated power/ Rotational speed kW/rpm

420/1800

torque/ Rotational speedNm/rpm

2779/1400

Emission standard

EU Stage II

Crawler gauge ×ground contact length ×track shoe width mm

8600×10580×

1500


Lifting capacity table of main boom with heavy boom head


Boom length(m)

24

30

36

42

48

54

60

66

72

78

84

Boom length(m)

falls

radius(m)

48

46

46

40

32

26

26

20

20

14

14

falls

radius(m)

6

600

6

7

569.9

570

576

7

8

521.9

514.8

509.4

507.4

8

9

430.7

418.2

415.8

413.4

411.1

9

10

356.8

351.7

346.7

341.9

337.3

334.5

331.1

10

12

261.8

259.6

253.9

248.4

245.9

244.7

242.5

240.3

240.1

12

14

205.6

202

198.4

197.1

195.3

192.4

188.7

186.1

185.8

184.4

182.9

14

16

168.7

165.4

164.1

162.9

160.6

158.2

157.0

154.0

152.9

151.7

152.2

16

18

140.9

137.9

136.5

135.3

132.3

131.0

129.0

126.5

125.6

124.6

123.6

18

20

121.5

118.8

117.4

116.1

113.4

112.1

110.8

108.1

107.3

105.1

104.2

20

22

106.7

104.1

102.7

101.3

98.8

96.2

94.9

93.6

92.3

90.9

88.9

22

24

92.3

90.9

88.5

87.1

84.7

83.3

81.0

80.7

79.4

78

24

26

82.7

81.3

79

77.6

75.2

74.0

71.7

71.2

69.9

68.5

26

28

74.7

73.3

71.1

69.7

67.5

66.1

63.9

63.3

62

59.9

28

30

66.6

64.4

62.2

60.8

59.5

57.4

56.0

54.6

53.3

30

34

53.7

51.7

50.3

48.9

47

45.5

43.1

42.8

34

38

45.6

43.7

42.3

40.3

39

36.7

35.3

33.9

38

42

37.3

35.9

34.1

31.8

30.5

28.3

26.7

42

46

30.4

28.2

26.9

25.5

22

20.4

46

50

24.8

22.9

20.1

17.2

16.1

50

54

18.7

16.4

13.7

12

54

58

16.0

13.3

11.5

9.3

58

62

10.8

8.8

62

66

6.8

66



Lifting capacity table of main boom with light boom head

Boom length(m)

72

78

84

90

96

102

Boom length(m)

Falls

Radius(m)

20

16

12

12

10

8

Falls

Radius(m)

12

252.8

12

14

197.9

189.0

157.3

14

16

164.6

159.2

138.2

148.2

135.1

16

18

133.9

133.9

120.6

130.7

121.2

97.1

18

20

115.7

115.6

114.5

113.1

111.6

85.7

20

22

100.6

100.2

100.3

99.0

97.7

80.6

22

24

87.8

87.7

87.3

86.6

85.4

73.9

24

26

77.4

76.7

76.0

76.5

76.0

71.7

26

28

69.5

68.1

68.2

67.8

67.3

66.0

28

30

62.1

61.2

60.9

60.4

59.2

58.7

30

34

50.9

50.1

49.8

48.8

47.7

47.1

34

38

42.3

41.6

40.8

40.7

39.7

38.2

38

42

35.8

35.5

33.7

33.5

32.6

31.2

42

46

30.4

29.5

27.9

27.7

26.8

25.9

46

50

25.7

24.6

23.6

22.9

22.1

21.4

50

54

22.1

20.9

19.7

19.0

18.4

17.8

54

58

18.7

17.8

16.6

16.0

15.3

14.7

58

62

16.0

15.2

13.9

13.4

12.7

11.5

62

66

12.7

11.6

11.1

10.4

9.4

66

70

11.0

9.6

9.3

8.5

7.3

70

74

7.7

7.2

6.7

5.8

74

78

5.6

5.1

78
