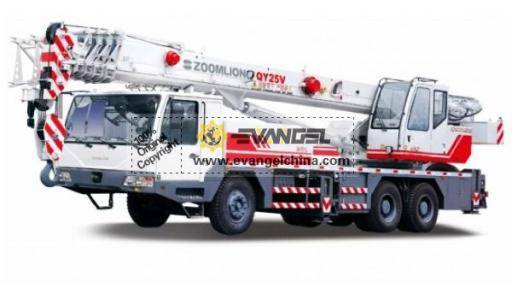

QY25V532 Truck Crane

QY25V532 Truck Crane



Features



The QY25V532 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years’ manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cab and compact decoration, adopts full slewing system, 5-section telescopic boom sections, hydraulic proportional control system and self-made full-width special purpose chassis with three axles. 6×4 drive provides the crane with good driving performance and flexible steering. The engine complies with the National Stage III emission standard.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.

The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.



Parameter



Item

Value

Remarks

Working performance

Max. rated lifting capacity kg

25000

Max. load moment of basic boom kN.m

980

Max. load moment of max. boom length kN.m

494

Max. lifting height of basic boom m

11.0

Max. lifting height of boom m

39

Deformation of the boom is not taken into consideration.

Max. lifting height of jib m

47.0

Working speed

Max. hoist rope speed (main winch) m/min

120

At 4th layer

Max. hoist rope speed(auxiliary winch) m/min

100

At 2nd layer

Boom derricking time s

40

Boom extending time s

80

Slewing speed r/min

0~2.2

Traveling specifications

Max. traveling speed km/h

78

Max. gradeability %

37

Min. turning diameter m

≤22

Min. ground clearance mm

220

Limits for exhaust pollutants and smoke

Meet with related standards

GB3847-2005

GB17691-2005

(National stage III)

Oil consumption per hundred kilometers L

45

Weights

Deadweight in traveling condition kg

31700

Complete vehicle kerb mass kg

31570

Front axle load kg

6900

Rear axle load kg

24800

Dimensions

Overall dimensions (L×W×H)mm

12700×2500×3450

Longitudinal distance between outriggers m

5.36

Transversal distance between outriggers m

6.1

Boom lengthm

10.4~39.2

Boom angle°

-2~80

Jib lengthm

8

Offset°

0 , 30



Chassis

Model

ZLJ5325

Code:ZLJ5325V3

Class

II

Engine

Model

WP10.270

Rated power kW/r/min

199/2200

Max. output torque N.m/r/min

1100/1300 ~1600
