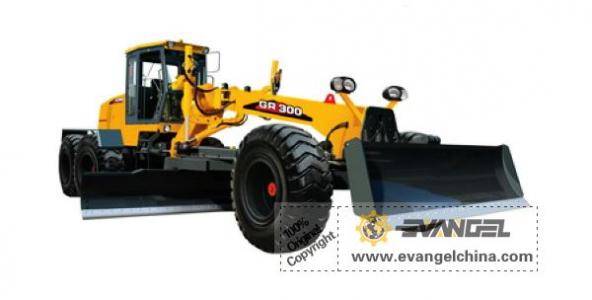

GR300 Motor Grader

                                                                                   GR300 Motor Grader

Basic specification

Engine model QSL9
Rated power/speed   224kW/2100rpm
Dimension(LxWxH) 10500×3100×3550mm
Operating weight(Standard) 26000kg

Performance specification

Travelling speed ,forward 5、8、11、19、23、40 km/h
Travelling speed ,reverse 5、11、23 km/h
Tractive force(f=0.75) 140KN
Max. gradeability 30%
Tire inflation pressure 350 kPa
Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa

Operating specification

Max. steering angle of front wheels ±50°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 15
Frame articulation angle ±27°
Min. turning radius using articulation 8.0m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 4920×787mm



                All technical parameters are subject to change without prior notice because of technical improvements.
