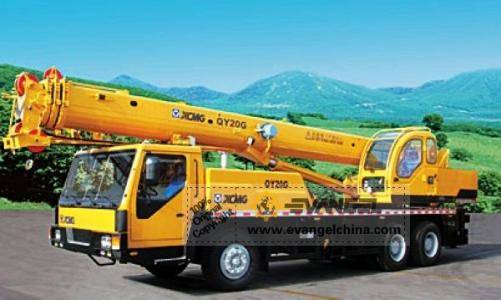

QY20G Truck Crane

QY20G Truck Crane



 Feature



 Wide cab
Four-segment dodecagon boom
Single cylinder luffing and double-winch
Manual mechanical operation



Cab
Spacious and luxury streamline cab

Dodecagon boom system
Constantly optimize the boom section, which can completely release the carrying capacity of the plates, and makes the lifting more reliable and safer.



Compact boom head
Extend the jib length, which can extend the working radius to the most.

Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.



The 5th outrigger
Extend the lifting space and scope, greatly improving the lifting capacity of the front part.



Parameter



Dimension

Unit

QY20G

Overall length

mm

12000

Overall width

mm

2500

Overall height

mm

3300

Weight





Total weight in travel

kg

26020

Front axle load

kg

7000

Rear axle load

kg

19020

Power





Engine model





Engine rated power

kW/(r/min)



Engine rated torque

N.m/(r/min)



Travel





Max. travel speed

km/h

75

Min. turning diameter

m

20

Min. ground clearance

mm

270

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

35

Fuel consumption for 100km

L

~35

Main performance





Max. rated total lifting capacity

t

20

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.38

Max. lifting torque

kN.m

833

Base boom

m

10.1

Fully extended boom

m

31.6

Fully extended boom+jib

m

39.9

Longitudinal outrigger span

m

4.9

Lateral outrigger span

m

5.4

Working speed





Boom luffing time

s

75

Boom full extension time

s

95

Max. swing speed

r/min

3

Max. speed of main winch (single rope)

m/min

100

Max. speed of aux. winch (single rope)

m/min

100
