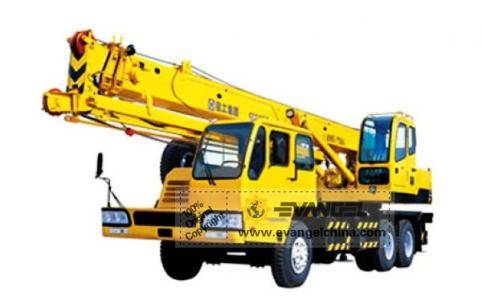

QY16C Truck Crane

QY16C Truck Crane



Classificatory

Item

Unit

Parameter

Engine

Model



D6114

Outline dimension

Overall length

mm

11990

Overall width

mm

2500

Overall height

mm

3350

Wheel base

Axle 1, Axle 2

mm

4025

Axle 2, Axle 3

mm

1350

Mass

Total mass in travel state

kg

22900



Axle load

Axle 1

kg

5240

Axle 2

kg

17660

Travel performance

Travel speed

Max. travel speed

km/h

70

Min. stable travel speed

km/h

4

Turning diameter

Min. turning diameter

m

20

Min. turning diameter at boom tip

m

23

Min. ground clearance

mm

270

Approach angle

(°)

21

Departure angle

(°)

10

Braking distance (at 30km/h with full load)

m

9.5

Max. grade-ability

24

Fuel consumption for 100km

L

35

Power

Engine rated output

kW/(r/min)

158/2200

Engine rated torque

N.m/ (r/min)

790/1400

Engine rated speed

r/min

2200


Main Technical Data for Lifting Operation

Classificatory

Item

Unit

Parameter

Lifting performance

Max. total rated lifting capacity

t

16

Min. rated working radius

m

3

Turning radius at turntable tail

m

≤3.12

Max. load moment

Base boom

kN.m

711

Fully extended boom

kN.m

449

Fully extended boom + Jib

kN.m

186

Outrigger span

Longitudinal

m

4.6

Lateral

m

5.4

Lifting height

Base boom

m

≥9.9

Fully extended boom

m

≥23.6

Fully extended boom + Jib

m

≥30.8



Working speed

Boom raising time

s

≤60

Boom full extension time

s

≤75

Max. swing speed

r/min

≥2.5

Hoist speed

(single line)

Main winch

Full load

m/min

≥54

No load

m/min

≥100

Aux. winch

Full load

m/min

≥54

No load

m/min

≥100

Noise limit

Crane exterior noise

dB (A)

≤118

At seated position

dB (A)

≤90
