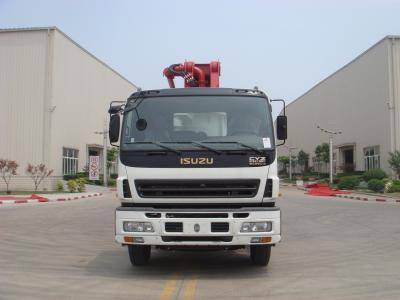

HB 40 Truck-Mounted Concrete Pump
Travel
Category
Item
Unit
Parameter
Chassis
Model
FM
Manufacturer
VOLVO
Max. speed
km/h
90.8
Max. gradeability
34.70%
Min. turning diameter
m
18.4
Brake distance
m
≤7
Wheelbase
mm
4900+1370
Tread (front/rear)
mm
2019/1834
Approach angle/departure angle
。
18/10
Min. clearance
mm
270
Tyre specification
12.00R20
Engine
Model
D13
Output power
kw/(r/min)
294/1400-1800
Max. torque
N.m/(r/min)
2000/1050-1400
Displacement
l
12.8
Emission Standard
Nation III GBⅢ
Others
Dimension (Length×Width×Height)
mm
11180×2500×3990
Total vehicle weight
kg
32600
Fuel tank capacity
l
410
Fuel consumption per 100km
l/100km
40
Pumping operation
Pumping system
Theoretical output(high pressure/low pressure)
m3/h
70/140
Concrete pumping pressure(high pressure/low pressure)
Mpa
11.8/6.38
Theoretical pumping times(high pressure/low pressure)
次/min
15/27
Max. diameter of pumping concrete aggregate
40
Feeding height
1450
Placing boom
Pumping slump range
12-23
Reach height
39.8
Reach depth
27.9
Slewing radius
35.8
Slewing angle
370
1st boom stretch angle
90
2nd boom stretch angle
180
3rd boom stretch angle
180
4th boom stretch angle
240
5th boom stretch angle
250
Outrigger span
Overall outrigger span
7800
Front outrigger transverse span
8350
Rear outrigger transverse span
7200
Others
Dosing type
S valve
Lubricating method
Automatic lubrication
Controlling method
Manual/remote control
Water tank capacity
600
Max. pressure of water pump
2
