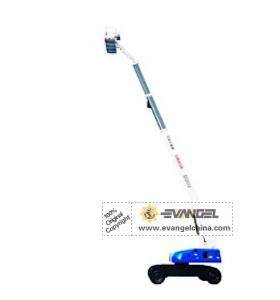

GKH30 Self-propelled Aerial Work Platform

GKH30 Self-propelled Aerial Work Platform



Feature



Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation
Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.
Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.



Parameter



Items

Unit

Parameters

Total length

mm

13000

Total width

mm

2490/3590

Total height

mm

2910

Axle base

mm

3600

Rated work height

m

30

Max. platform height

m

28.3

Max.work range

m

24.3

Arm luffing range

°

-12~+80

Bent arm luffing range

°

-65~+70

Arm luffing time

s

40

Arm contraction time

s

70

Max.rotation speed

r/min

0.5

Max.tail swing

mm

1400

Platform size

mm

1800×900×1150

Platform rotation range

°

±90

Turntable rotation radius

mm

2650

Total weight under travel condition

kg

15880

Rated load

kg

150

Max. load

kg

450

Max.travel speed

km/h

5.6

Min. turning radius

m

7

Min.ground clearance

mm

260

Max. gradeability

%

30

Engine model



YC4D80-T10

Rated engine power

kW/(r/min)

58/(2400)

Solid tyre



10.00-20/7.5



The specification is subject to change without notice.
