CDQ24 Aerial Platform Fire Truck

CDQ24 Aerial Platform Fire Truck

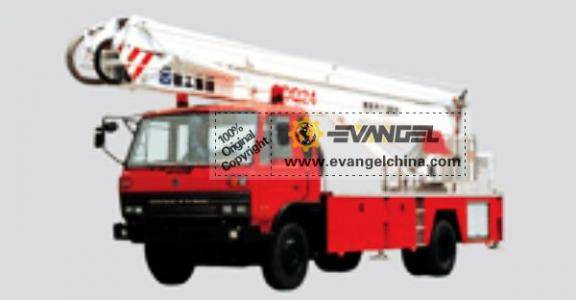

    CDQ24 Aerial Platform Fire Truck has 3-section folding boom, 24.5m of rated working height, 14.3m of working radius, 30L/s of rated water monitor flow, and 270 kg of rated load on the platform. The working platform is leveled by combined mechanism of rod and chain. A flap in front of the platform is for easy access to object rescued, a falling device is equipped for persons rescued arriving the ground from the platform safely.



Parameter



1、Main Technical Data in Travel Configuration

Category

Item

Unit

Parameter

Dimension

Overall length

mm

11380

Overall height

mm

3640

Overall width

mm

2500

Wheel space

mm

4700

Weight

Gross weight

kg

11510

Axle load

Front axle

kg

3700

Rear axle

kg

7810

Travel parameter

Chassis

Dongfeng EQ1118G6DJ15

Engine model

EQB160-10

Cummins EQB160-10

Power

kw/(r/min)

118/2600

Torque

N·m/(r/min)

559/1500~1700

Max. travel speed

km/h

≥85

Min. turning diameter

m

≤18

Approach angle

°

≥34

Departure angle

°

≥10.5

Braking distance (at speed 30km/h )

m

≤10

Min. ground clearance

mm

248

Max. grade-ability

%

≥27


2、Main Technical Data for Operation

Category

Item

Unit

Parameter

Main performance

Rated working height

m

24.5

Rated load of the platform

kg

270

Max. working radius

m

14.3

Boom

Boom length

1st boom section

mm

9580

2nd boom section

mm

10290

3rd boom section

mm

2500

Elevating range

Angle of 1st boom section to horizontal

°

1~80

Angle of 2nd boom section to horizontal

°

0~75

Angle of 2nd boom sectionto 3rd boom section

°

78~180
